System minimizes product damage

Gently drops boxes onto lower conveyor

Multi-Conveyor Upender System
Multi-Conveyor Upender System

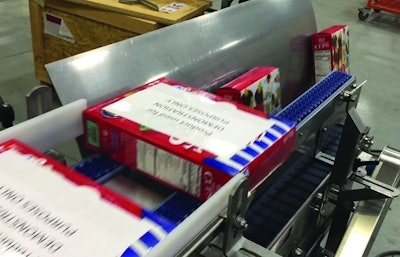

Designed to rotate bag-in-box cartons from wide edge to narrow edge, the Multi-Conveyor Upender stainless-steel table top system uses gravity with minimal guidance for reorientation. A single-lane, slave-driven timing belt supports cartons on the right hand side, allowing the bottom of the cartons to rotate down counterclockwise to a 4 1/2 in.-wide table top conveyor, while an adjustable deflector plate at the carton rotation point and adjustable stainless-steel guide rail brackets provide product control.
