Bison Gear & Engineering Corp.: Plug and play servo system

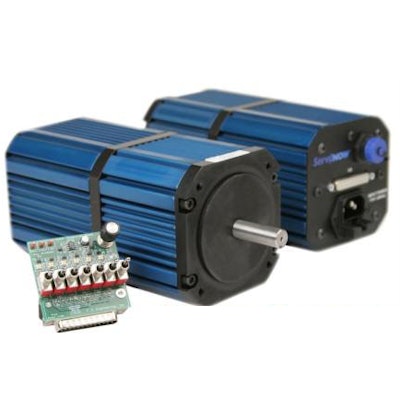

The line of 34 frame integrated intelligence brushless servo motors comes with rated torques up to 195 in oz (1.38 N-m). Can be quickly programmed and monitored using a standard PC through a built-in USB port. Up to 32 index motion profiles in velocity or positioning are easily integrated with QuickLaunch software control program. Includes 4 programmable digital inputs and outputs, analog I/O (0 to 10VDC or 4 to 20MA, 12 bit), and 4096 counts position resolution.
