Creating a Succulent Roasted Chicken With Higher Yield

Injection technology

Bart Leenders, product specialist in marination, explains the GEA MultiJector technology used for the inject-tumble-cook process.Injecting the meat before tumbling speeds up the process and generates more capacity in your tumblers, reiterates Bart Leenders, product specialist in marination for GEA. He explains the GEA MultiJector technology used for the process. “If we combine physics and state-of-the-art equipment, we can end up with 6% extra yield during a process if you compare it with the traditional way, by tumbling only,” he says. “If you only tumble, you do not use all the water binding capacity of your meat.”

Adding the injection step distributes the brine much more evenly and quickly to the whole piece of meat—not only at the surface, but also into the core. “By that, the customer ends up with a nice and juicy piece of meat,” Leenders adds.

For poultry brine injections, GEA recommends 2 mm injection needles with its MultiJector system for better brine distribution that does not destroy the structure of the meat.Photo courtesy of GEAFor poultry, GEA recommends a 2 mm needle. “If you compare it with a 3 mm needle, you’ve got the benefit that it creates some small needle holes that easily close, and you keep the brine inside,” Leenders says. “With that small needle pattern, you’re creating way more injection spots as with a wide 3 mm pattern. The amount of injecting spots contribute to the better brine distribution inside of your meat and a low standard deviation so we can work with lower pressures that do not destroy the structure of your meat.”

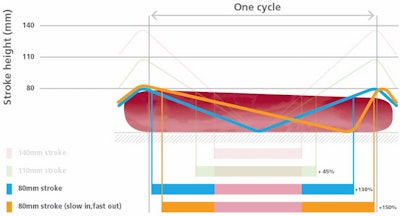

Injecting the meat from a lower stroke height enables GEA to maximize the time in meat and thereby lower pressure.Aside from the tight needle pattern, also important what GEA calls its Time-in-Meat technique—a linear movement with a constant speed. “In a common process, your needle stroke is quite long, so the time is limited that it is in the meat. Some equipment is already able to adjust the height to certain positions; you create a little bit longer time in the meat,” he explains. “What we can do with our equipment is that we can adjust the height just above the meat. With the maximum time in meat, we can inject with lower pressures. Lower pressures mean less damage of your structure and better water binding capacity.”

Third-generation CookStar

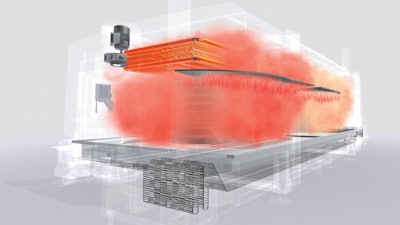

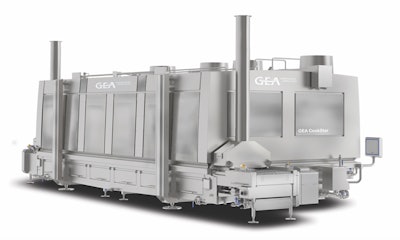

The GEA CookStar 1000 industrial spiral oven offers an improved heat exchanger design and optimized horizontal and vertical airflow.Photo courtesy of GEATo take the 6% yield improvement gained by the injection step up to 10% factors in use of the CookStar 1000, where GEA uses a three-zone cooking concept that combines both horizontal and vertical air speeds.

“Cooking is all about having control over your parameters. In the CookStar, we have a set of three parameters that we control,” says Luuc van Landveld, product manager for GEA. “First of all, there’s the temperature. We can control the temperature in two zones independent from each other. We can go as high as up to 250°C and we can go down in the other zone. So we can have a differential temperature between the two zones of up to 150°C.”

Luuc van Landveld, product manager for GEA, explains the benefits of a more controlled dewpoint in the CookStar 1000.The second parameter is the dewpoint. “We use the moisture in the oven—the steam—to transfer the latent heat to the product. Also there, we can control the dewpoint independent from each other. We can go as high as 95°C and as low as 45°C.”

Finally, GEA also controls the speed of the air in the zones. “We can do it over the horizontal zones anywhere between 1 and 7 m/s,” van Landveld says. “And then in the booster impingement zone, we can go up as high as 35 m/s, which is about the speed of sticking your hand out of the window on the highway.”

GEA uses all of these parameters to optimize settings for customers’ cooking processes. Here’s how those parameters are controlled in practice: “We get the heat exchanger, and we send hot air to it. It heats up. Then we can inject steam to control dewpoint,” van Landveld describes. “What’s new about the third generation is that we can also choose the dewpoint. By that, we open fresh air gates, where we actually suck in fresh air to lower the dewpoint in the oven, which is especially suitable if you want to roast or, for instance, you have a non-fry coating, but you still want to have this crispiness.”

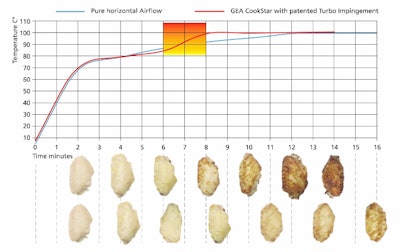

The CookStar 1000 enables a browner coating in a shorter cooking time, as shown in the top row of chicken samples.The results that GEA has seen with the cooking process are significant. “We compared a purely horizontal oven with our three-zone turbo CookStar,” van Landveld says. “What you see in the first zone, you normally use the latent heat of the steam to bring up the temperature. But then you need to set color because the steam doesn’t set any color. So, you need to cook on temperature to get color. What is different on the CookStar is that we use this booster impingement zone in the middle. What we do is we hit the product with fast-moving hot air. So we kind of blow-dry the surface and the surface only; we don’t want to lose any yield in the core. Now that we did the surface treatment, we actually need far less time to develop even more color. So basically, what you end up with is a shorter cooking time and having a more brown coating.”

Though this is for roasted products, it applies to coated products as well. “If you want to cook coated products, you want to have a nice crispy outside with a juicy inside,” van Landveld notes. “Normally, it’s a compromise, where you either have a little bit of soggy surface and a good yield or you have a crispy coating with low yield. Also there, the booster impingement zone really helps you to dry the surface. So you can have the combination of a crispy coating and a juicy core.”

With spiral ovens, there is often a temperature difference over the width of the belt. To explain the ramifications of that, van Landveld describes a cooking process, where you use the first zone to get your dewpoint to raise the heat, then you have your booster impingement to prepare the coating for crispiness, and then you cook it to make it food-safe, achieving the perfect yield.

“But in real life, you have to compensate for the temperature differential over the belt,” he says. “So let’s say there is a 6°C temperature difference over the belt. That means if you would go for your perfect cook, one side of the belt might be undercooked, the other side might be overcooked. So you need to always overcook to compensate for the worst part of the belt.”

Instead, GEA came up with a way to reduce the temperature difference over the width of the belt. In the latest CookStar, the temperature difference is only 1.5°C. “That enables us to really reduce the need for overcooking. So bottom line, it gives you better yields and shorter cooking times.”

Ultimately, combining the injection step before cooking creates a succulent chicken with improved yield. The GEA MultiJector locks in marinades, while the CookStar 1000 oven cooks fast and with precision.
