In-line Mixer

The Ross in-line ultra-high shear mixer Model HSM-715XSUHD-250 is built for high-quality dispersions and emulsions.

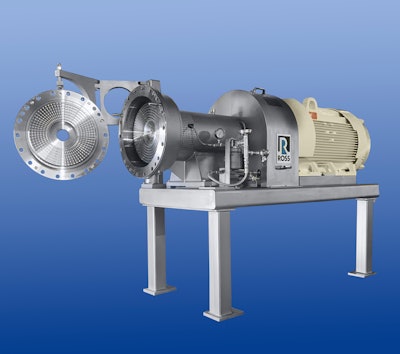

Ross Inline Ultra High Shear Mixer

This content was written and submitted by the supplier. It has only been modified to comply with this publication’s space and style.

The Ross in-line ultra-high shear sanitary mixer Model HSM-715XSUHD-250 is designed to deliver superior dispersion, emulsification, and homogenization at high throughput. Featuring a patented X-Series rotor/stator in Type AL-6XN stainless steel, the mixer takes product through the center of the stator and moves it outward through radial channels in the rows of concentric rotor/stator teeth. The combination of high tip speed and extremely close tolerances between the interlocking channels subjects the product to intense shear in every pass.

Built for continuous operation, the HSM-715XSUHD-250 is driven by a 250 hp washdown- and inverter-duty motor, and is equipped with heavy-duty tapered roller bearings. Its mixing chamber can withstand 150 psig at 250°F and features a stainless-steel jacket for heating/cooling.

The mixer is CIP compliant, with the back of the mixing chamber relieved to promote thorough cleaning around the seal area. It is supplied with a NEMA 12 pre-engineered control panel.
