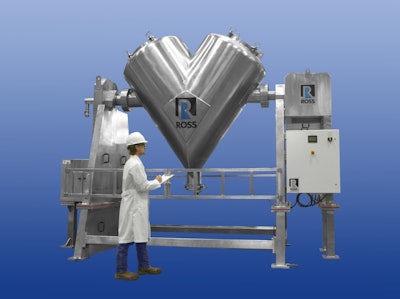

Designed for atmospheric operation, the Ross Model VCB-50 V cone tumble blender utilizes diffusion mixing to blend powders, high-density powdered metals, granules, pellets, and other free-flowing solids. It features a Type 316 stainless-steel intensifier bar fitted with high-speed 19-in. chopper blades operating at 475 rpm to reduce the size of agglomerates. Doubling as a spray bar, the intensifier bar is equipped with fan-style nozzles for minor liquid additions.
The V-shaped vessel is driven by a 30 hp motor to approximately 12 rpm, while the intensifier bar is driven by a 15 hp motor. Sanitary tri-clamp connections and a mirror finish on the product wetted parts promote easy cleaning, inside and out.
The control panel includes a 7-in. color touchscreen display with individual start/stop and speed controls, a jog function, cycle timer, and recipe system.
