Valves with hygienic design

Have no pockets where particles can collect

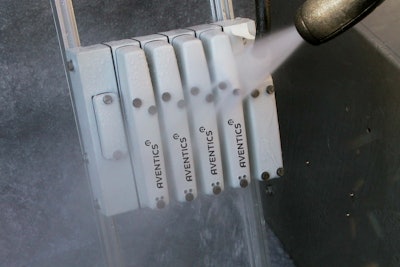

Aventics CL03 Clean Line Valve
Aventics CL03 Clean Line Valve

Built to withstand up to 1,450 psi washdowns, AVENTICS CL03 Clean Line pneumatic directional control valves have an IP69K protection class rating. The standard manifold valves offer flows to 0.85 Cv, while the high-flow manifold versions provide flows up to 1.1 Cv, and the inline valve has a flow rating of 0.7 Cv. All the valve manifolds are available with multi-pin electrical connections or fieldbus; the fieldbus options include Ethernet/IP, EtherCAT, ProfiNet, CC-Link, CANopen, DeviceNet and ProfiBus.
