The HMI 4.0 is suited for both stand-alone machines and entire lines and is part of Bosch’s industry 4.0 applications. For instance, it provides an interface for data collection, data sharing, and visualization. As of Interpack 2017, Bosch will equip all new machines of its processing and packaging units with the HMI 4.0. “This is a revolutionary innovation. The aim is to ensure that all our machines feature the latest hardware and control technology, and also provide a consistent user guidance with the same comprehensible surface,” says Stefan König, member of the board of management at Bosch Packaging Technology. “Thereby, Bosch not only explores new horizons with regard to design but also sets a milestone for connected solutions in the processing and packaging industry.”

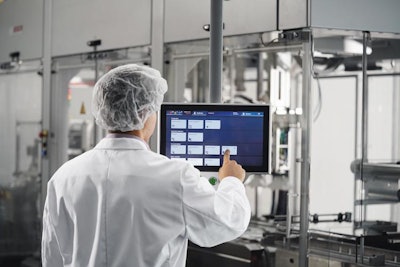

A major new feature of the HMI consists in its guided workflows, which lead operators through each step of production processes (see photo). The same applies to format changes, cleaning and maintenance, and other processes. This facilitates the daily work. The display resembles that of mobile devices like smartphones or tablets. Thanks to an intuitive, touch-sensitive surface, data can be entered with gestures (multi-touch), including zooming in and out with two fingers – “pinch and stretch” – as well as navigation by swiping.
“In future, machines and systems will be easier to operate since operators have a uniform navigation concept with the same basic functions for each machine of a line,” König explains. “Even existing machines may be retrofitted upon request.” Thanks to a clearly arranged, tile-structured menu, operators will benefit from a quick overview of all functions and processes of their machines. Tailored to specific user roles, such as operator or line manager, the HMI 4.0 only displays the processes relevant to the current user.
The HMI 4.0 provides comprehensive, integrated support as well as more transparent processes and notifications. In case of production downtime, operators immediately receive a notification including information about the causes and troubleshooting support to quickly restart their machines. Direct links to user manuals and format changeover lists assist users in their day-to-day tasks. Furthermore, a new comment section enables users to add their own notes and share them with others.
“The HMI 4.0 provides an immediate overview of all production parameters and data. This is especially important with regard to the big amount of data in the connected industry. During production, all key information is summarized on a central dashboard (see photo). With its standardized interfaces, the HMI 4.0 is a central element for the connection to other solutions. This way, our customers are fully prepared for upcoming industry 4.0 challenges,” König says.
Bosch has tailored its HMI 4.0 especially to users’ needs and requirements. Machine operators all over the world were interviewed and operating habits observed. “The new HMI is already in use on first machines of several customers,” says König.
System and line competence as well as connectivity are essential characteristics of the intelligent factory of tomorrow. It’s a matter of shifting the focus from a single machine to the entire production line by offering complete solutions. These include multiple production stages, as well as further processes within the production environment and a comprehensive service. Technological progress and the increasing digitization open up numerous opportunities to better connect all parts of the value chain by applying integrated industry 4.0 solutions, and to ensure product quality and long-term operability of machines.
For a video description of the HMI 4.0, go here >>
