Modules enable interfacing of industrial controllers with motorized rollers

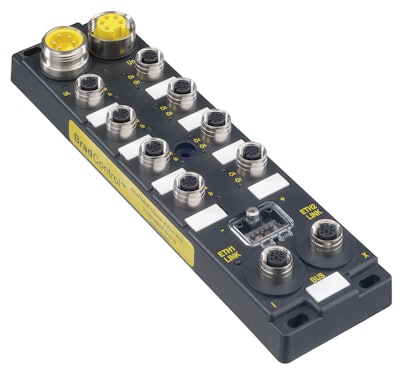

ODVA conformance tested and approved, Brad HarshIO EtherNet/IP 60mm digital roller drive modules are machine-mountable to connect industrial controllers directly to I/O devices; each module supports 8 digital inputs, as well as 4 digital outputs and 4 analogue outputs, to control the speed of the drive. Engineered for conveyor applications, the modules feature an IP67-rated housing to protect against the ingress of dust and liquid in high-vibration environments. An integrated 2-port switch delivers full duplex data transmission and enables a daisy-chain wiring topology. The modules come equipped with diagnostic LEDs for visual feedback on network, power and I/O status.
