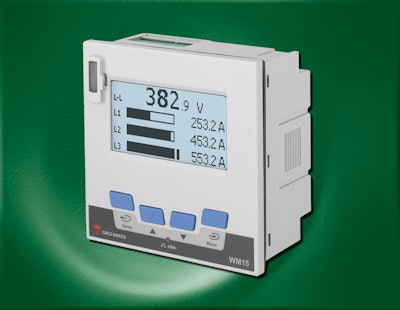

Carlo Gavazzi, a designer, manufacturer, and marketer of electronic equipment, announces the launch of its WM15 Three Phase Power Analyzer. This is made to be an addition to the company’s range of energy meters and power analyzers, which are targeted to assist manufacturers and end users in monitoring and managing escalating energy costs. The WM15 is designed to be a Class 1 (kWh) 3-phase power analyzer which can be used for single, two and three phase systems, as well as wild-leg systems. It can measure most relevant instantaneous electrical variables, energy consumption, and harmonic distortions.
The WM15 is meant to be an alternative for traditional analog meters that need to be replaced, and thus provide final users with visual indication of the current values by means of the three bar graphs shown on the matrix LCD display.
Installation should be easy, and commissioning fast, so that the WM15 can be for panel builders, OEMs, and installers. The WM15is also meant to be an economical system designed for use in a variety of markets and applications, including conventional energy, building and industrial automation.
Features of the WM15 include:
· Self-powered version: 208 to 415 VLL AC
· Auxiliary power supply version: 208 to 600 VLL AC
· Current inputs: 5 A by CT connection
· Free downloadable configuration software
· 3-phase/4-wires, 3-phase/3-wires, 2-phase, 1-phase systems
· Optical port for configuration via OptoProg (Bluetooth or USB)
· Digital output for pulse or alarm outputs
· RS485 Modbus RTU port (optional)
· cULus listed
