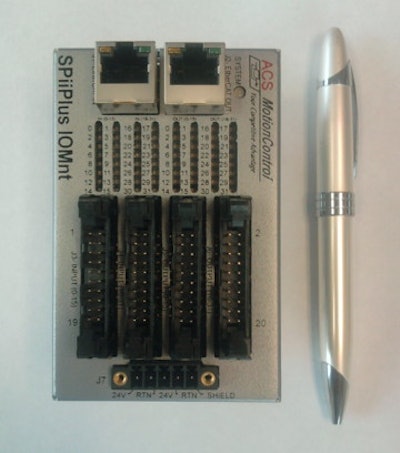

The SPiiPlus IOMnt inputs are designed to meet EN 61131-2, type 3 (24V source type) and are functionally and pin compatible with Beckhoff EL1862/1872. The outputs are 24V/0.5A each, source type, fully protected
and are also functionally and pin compatible with Beckhoff EL2872. One
IOMnt-32-32 can replace two units of EL1872, two units of EL2872 and the
EK1100 Ethercat bus coupler in a more compact package at a lower cost.
Optional breakout screw terminal kits are available for easy
prototyping.
