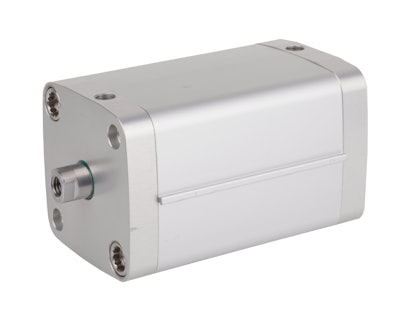

Compact and hygienically designed, Aventics Clean Line CCL-IC pneumatic ISO cylinders come in bore sizes from 16 to 100mm. The sensor rail is located on the outside at an offset of 90° relative to the air connections. The profile tube, head and cap are made of anodized aluminum, while the screws and piston rod are constructed from stainless steel. The scraper material and lubricants are approved for food industry usage. Single- and double-acting, single- or double-rod end and internally or externally thread rod versions are available.
ISO cylinders are designed for limited installation spaces
Have maximum strokes to 500mm
