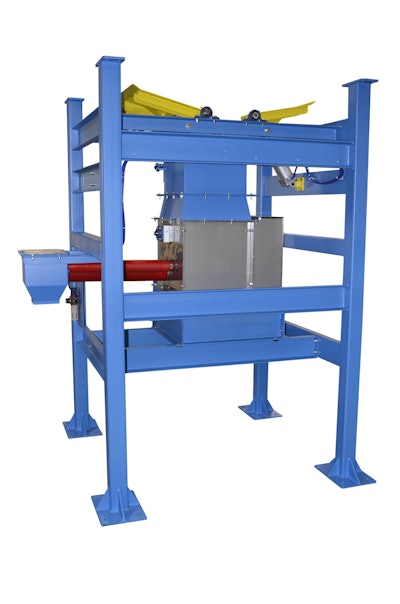

The Model TSF twin-screw feeder from Best Process Solutions is designed for precise batching and weighing applications. The feeder’s dual-helix design combines fast, high-volume filling with accurate dribble flow at the end of the cycle. Its compact design is beneficial in limited space applications that prohibit multiple individual screw units.
Two helixes—1½ in. and 4 in. in diameter—are mounted on an 18x22-in. hopper. They are rated at 17 cu ft and 283 cu ft/hr, respectively, at maximum RPM with 100% efficient conveyable product and no slippage.
TSF is ideal for batching to weigh hoppers; low loss-in-weight scale-monitored flow; low loss-of-weight batch applications with scales; drum and pail packout lines; and recipe-type batching by multiple computer-controlled units. Many options are available.
