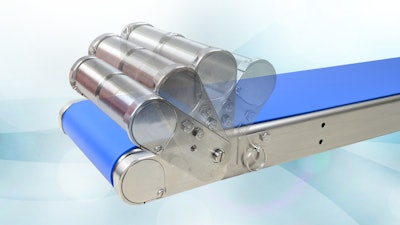

Thanks to a unique series of pull-pins, sides and guides can slide off in one piece, and stand brackets can flip down out of the way. The tail can then be flipped up to relieve tension on the belt, and the belt, drive, and tail can be removed for in-depth cleaning — all without a single tool.
HydroClean conveyors are built on a single-piece 304 stainless steel frame to NSF standards. To minimize opportunities for bacteria growth, they feature a self-draining frame, minimal horizontal surfaces, no exposed threads, and hex head fasteners.
HydroClean conveyors handle speeds up to 300 ft./min. with loads up to 120 lbs. Widths are available in increments from 4 to 24 in. and lengths from 36 in. to 18 ft. The 2.34 in. profile will fit in even the most space-limited applications. They are available with a variety of v-guided belting, including sealed edge and totally encapsulated belts.
