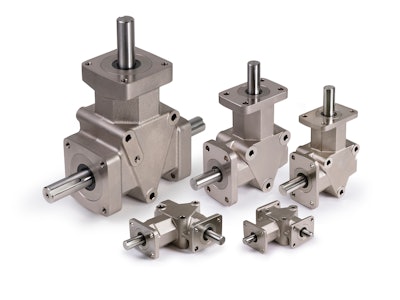

Tested and certified by an independent laboratory, Zero-Max’s IP65 Rated Crown Right Angle Gear Drives feature a nickel-plated housing for corrosion protection and are now available in 1:1 and 2:1 ratios and 2-way, 3-way, and Counter-Rotating shaft configurations.
Ideal for food processing and food packaging applications, and harsh environments requiring frequent washdowns, these Crown Gear Drives feature ingress protection, sealing the Crown Gear against environmental concerns such as dust, dirt and water infiltration from water jets. They also feature nickel plated housings, corrosion-protected stainless-steel shafts and NBR covered shaft seals, adding more protection from washdown chemicals and process chemicals present in challenging applications.
Capable of speeds up to 2000 rpm, Zero-Max Gear Drives feature heat-treated AGMA Class 10 spiral bevel gears and are lubricated for life with H1 Rated Food Grade Grease. Additional features include a sealed and tamper proof design, precision hardened and ground ball bearings, maintenance free operation, and grease lubrication to ensure optimum performance in temperature ranges from -20° C to +100° C (-4° F to + 212° F). Wider operating temperature range available upon request.
The drives also have a bright, clean, water-shedding design that is free from bacteria traps.
