High-shear mixer suitable for homogenization

Also designed for thorough cleaning and disinfection

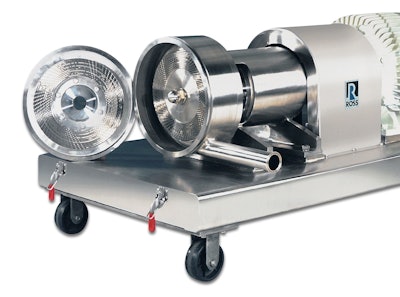

Ross X-Series Ultra-High Shear Mixer
Ross X-Series Ultra-High Shear Mixer

Built for inline emulsification, particle size reduction and homogenization, the Ross X-Series CIP-ready ultra-high shear mixer features a rotor/stator that runs at tip speeds over 11,000 ft./min. as it forces product through concentric rows of intermeshing teeth; the product is subjected to mechanical and hydraulic shear in a single pass. All the wetted parts are Type 316 stainless steel machined to a 32 Ra finish. Rated for 150 psig at 250°F, the mix chamber includes tri-clamp inlet/outlet connections and can be supplied with a heating/cooling jacket.
