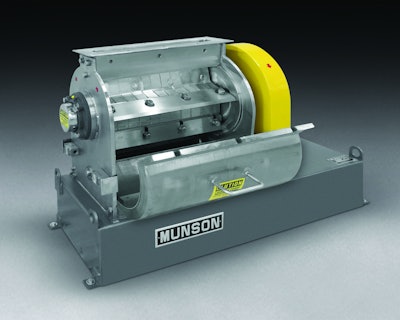

The Munson Model #4-SS stainless steel rotary knife cutter cuts corn, spices, roots, grains and other foods into controlled sizes, with little or no fines or dust. It features a rotor assembly with 5 full-length knives that cut material against 4 stationary bed knives until the particles become small enough to pass through apertures in 2 large, semi-cylindrical screens. Material is gravity fed through the infeed hopper at the top of the cutter and into the star-shaped rotor assembly. On-size particles pass through a perforated screen with apertures from 3/64 to 2 in. and discharge through a flanged outlet by gravity or pneumatically. Optional feed hoppers are available with baffles and a slide gate to control flow for conveyor feeding.
Rotary knife cutter offers greater shear and less impact
Yields end product with clean cuts in tightly controlled size ranges
May 7, 2017
