The LXP features multiple weld modes, power levels and frequencies. The standard weld modes are continuous, time, and energy. It also is available with an optional factory-installed ground detect weld mode. The units are available in three frequencies: 20 kHz at 150 and 550 Watts; 30 kHz at 550 Watts; and 40 kHz at 150 and 550 Watts.

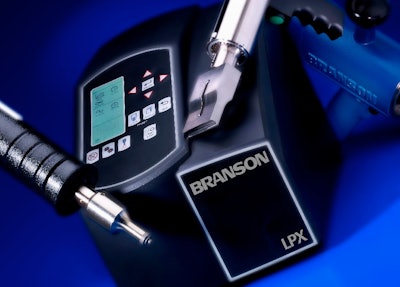

The LPX series hand-held ultrasonic welders are compact, lightweight tools used to spot weld or stake large, complex parts and those with hard-to-reach joint areas. Two types of hand-held welders are available: pistol grip (PT) and barrel grip (HT).
The LPX units can be used with their appropriate hand-held welder or can be connected directly to a converter/booster/horn stack. The units utilize Branson’s patented circuitry with closed loop amplitude control to provide maximum process control.
