Pneumatic Conveying System Sets Material in 1 Continuous Layer

Provides safe, contactless, automated transport of flour, lactose, maltodextrin, and other materials

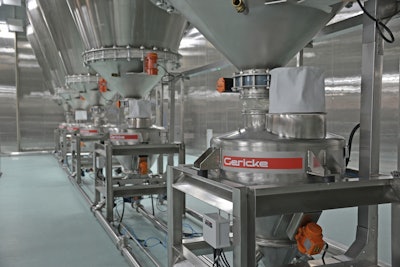

Gericke Dense Flow Phf Dry Material Conveying System

Built for a range of free-flowing to poor-flowing coarse and fine powders, the Gericke conveying system automatically sets material into a single layer for continuous, first-in-first-out transport at rates up to 88 cu ft per min with moderate gas velocities, at traveling distances up to 2,600 ft. The DenseFlow PHF dry material conveying system introduces the air or other transport gas from the pressure vessel and separately from a discharge elbow downstream to achieve air-to-material ratios averaging 88 lb of material per lb of conveying air. The system can be custom engineered for each installation.
