Data and AI Accelerate Digital Transformation in Pharma

The PDA Annual Meeting emphasized the growing need for pharma manufacturing facilities to become digitalized to improve productivity, open the door to further technologies, and make the most of the ‘digitally native’ workforce.

As the name implies, “Pharma 4.0” is Industry 4.0 applied to pharmaceutical manufacturing, which is the addition of cyber-physical systems to computerize manufacturing while focusing on the human element. The concept has been gaining traction in recent years and was a common theme in the 2021 Parenteral Drug Administration (PDA) Annual Meeting.

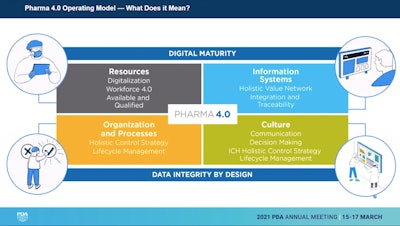

The four pillars of Pharma 4.0, as explained by Gilad Langer, industry practice lead at Tulip Interfaces, a digital technology provider, are:

  • Resources
  • Information Systems
  • Organization and Processes
  • Culture

These pillars focus on digitization, digitalization, and the human element.These pillars focus on digitization, digitalization, and the human element.These pillars focus on digitization, digitalization, and the human element. Here’s one company’s explanation of digitization vs. digitalization. Further, Pharma 4.0 allows for the democratization of technology. In other words, what once was available only to experts is now available to the general workforce. The shift to this democratization can be eased through the new generations entering the field, who are all but raised on technology, making them what Langer called “digitally native.” Yet, the pharmaceutical industry is not taking full advantage of these advancements.

One of the main facets of the Resources pillar is digital transformation which centers on real-time data and information to increase productivity, enable machine operators to do their jobs more efficiently, and further allow the use of predictive technologies, augmented reality (AR) and virtual reality (VR), Big Data, artificial intelligence (AI), and machine learning (ML). It allows for connectivity through integrated systems, equipment, people, and other software systems; real-time visibility into operations; transparency for quicker reaction time; and, at its highest levels, predictability and self-optimization in that the system can predict the outcome of a batch or machine’s performance and self-correct. In this kind of environment, apps, smart sensors, or the Industrial Internet of Things (IIoT) are used as a means of first capturing the data from the floor, which is then transferred to the cloud, available for use.

Replacing documents with data

Thus, a focus of digital transformation is replacing the use of paper as a means of data collection. Paper is cumbersome and time-consuming, placing additional unneeded demands on the workforce, yet factories–and especially those in pharma–still rely heavily on its use. Referencing the Pharma 4.0 pillars, Langer pointed out that digitally native workers come into the workplace only to be brought into a Culture which teaches them to use Organization and Processes that are centered on paper. This is a waste of ability to help transition into the digital era and serves only to create a workforce gap.

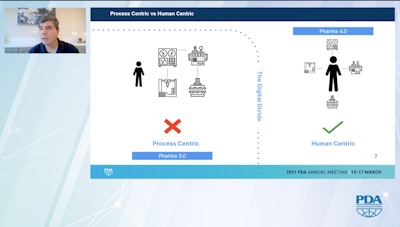

At the same time, digital transformation is not one large operational problem to be tackled at once, but rather is made up of a multitude of small changes facilities can make which don’t take as large of an investment to fix, according to Langer. The Organization and Processes need to become digitally native, and continuous improvement is at the core of this transformation. Langer envisions this process taking a number of years to fully accomplish, with one foot on each side of “the digital divide.” This paradigm shift to digital data will happen gradually, requiring the industry to switch from its current document mindset, and it is never too late to start.

Organization and Processes need to become digitally native, and continuous improvement is at the core of this transformation.Organization and Processes need to become digitally native, and continuous improvement is at the core of this transformation.“What we want to do is create digital content that is human-centric for one small problem at a time,” said Langer. He went on to explain a few examples applied with a set of technologies called no-code apps or digital content. “Basically, all of your engineers, all those who are within the operational domain of your manufacturing plant, can use something that feels like and looks like a PowerPoint to create these digital sets.” They do this by logging events, creating data sets that can then be stored in the cloud in a way that will allow advanced algorithms like AI and ML to use the data.

More sophisticated ways to capture data–such as work order terminals that interact with an ERP to get input on work orders on the floor, and batch processing and recording, capturing batch record data–can be used, though simple checklists on mobile devices, simple deviation/exception recording on a laptop or tablet, and especially digital logbook solutions are also effective.

Digital logbooks run operators through simple screens on interactive apps with built-in quality checks and built review-by-exception. Langer suggests incorporating digital logbooks as a simple way to introduce digital transformation to the floor along with batch records. Data entered in is displayed in tables, graphs, charts, and other familiar formats, which are easily consumed by advanced algorithms. This data is simple and transparent and does not require sophisticated databases.

Managing your data

Vasu Rangadass, CEO of L7 Informatics (L7), Inc, a software solution provider, agrees with Langer, that starting small is the way to approach digital transformation though the end state needs to be kept in mind. Otherwise, as Rangadass puts it at the PDA event, the process will be like putting together a puzzle without knowing what it should look like in the end, which only wastes time and resources.

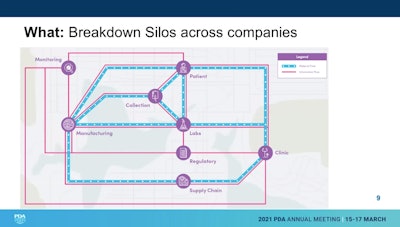

Rangadass went on to explain that digital transformation requires a clean set of data. The traditional way of collecting data is to gather it from all sources and put it into one single database as a system of reference. But this creates "digital silos," which then require validation and as companies merge, are acquired, and receive new products, this leads to complications with outdated data, resulting in high IT expenses as IT maintains various complex, redundant systems. Unified platforms would simplify the collecting and sharing of data between departments and companies and eliminate those complex, aforementioned redundant systems. Unified platforms have common data models, codes, tooling, architecture, and a common business process that spans capabilities across departments and companies in order to provide greater process intelligence all from one system that offers the applications needed.

Unified platforms would simplify the collecting and sharing of data between departments and companies and eliminate complex, redundant systems.Unified platforms would simplify the collecting and sharing of data between departments and companies and eliminate complex, redundant systems.L7’s ESP software solution has taken on concepts from Robotic Process Automation (RPA) composable unified platforms with an FDA regulatory compliant framework, which is applicable to the manufacturing scene. Applying such a digital solution can take anywhere from 3 to 9 months, said Rangadass, depending on the complexity of the process, the quality control (QC) process, and the manufacturing process. When a system has become digitized, the application speed increases. L7 customers tend to start the digitalization process with QC and batch records.

“We want to remove barriers to connectivity. We have connectors to 150 different wire process equipment, environmental monitoring systems, software systems, etc. These connectors play an important part, and we package them as part of the platform to reduce any kind of impedance for customers,” said Randagass. “While connectors are very easy and cheap to build, not having them in one place is a challenge, so we package all the connectors so customers can easily deploy the platform and that gives them contextualized data whether it’s environmental or from the wire process equipment.”

Validation and the regulatory aspect

L7’s efforts towards regulatory compliance with ESP span to its creation as a Good Manufacturing Practice (GMP)-compliant platform, which can be up to 80% validated, meaning that customers need only drop in their processing and validate the last 20%.

Langer further pointed out that if companies choose a vendor in the GMP space, their platforms will come pre-validated, and from there they could build on the platform with no-code apps. Validation for no-code is also different from software validation in that it must be validated based on intended use, as in the end:

  • the apps are instruments in processes for capturing data
  • that data will prove the results, which
  • further proves the companies are in control of the data and that they are in compliance.

Toni Manzano, CSO and co-founder of Aizon, an AI platform provider, added to this by explaining that the way to validate software with cloud web browsers has completely changed as technology has continued to evolve and we cannot make the assumptions once made about classical software.

“The FDA is even moving from classical computer system validation to computer system assessment where documentation is not the base of the pyramid. Risk assessment is now the base of the pyramid so you can see that everything is changing but you can assess the risk and act accordingly,” said Manzano. He explained that principle component analysis (PCA) can be used as a classic algorithm to find relationships between variables within data, but AI must come into the picture in order to make robust real-time processes to keep product manufacturing under statistical control. This involves critical factors that affect processes and which further rely on feedback from the floor, supplying data to run the AI and determine that it is working properly. Adoption of AI in validation and other processes, including data collection and management, can result in valuable predictive qualities within a manufacturing facility.

“Technology has come a long way in the last several years and will dramatically reduce the cost of information technology to use new platforms,” said Rangadass. “Digital transformation is necessary to reduce costs and increase the speed of drugs to market.”
