Reverse-lift Mixer Facilitates More Uniform Blade-to-Vessel Clearances

Doesn’t rely on floor being completely level

This content was submitted directly to this website by the supplier.

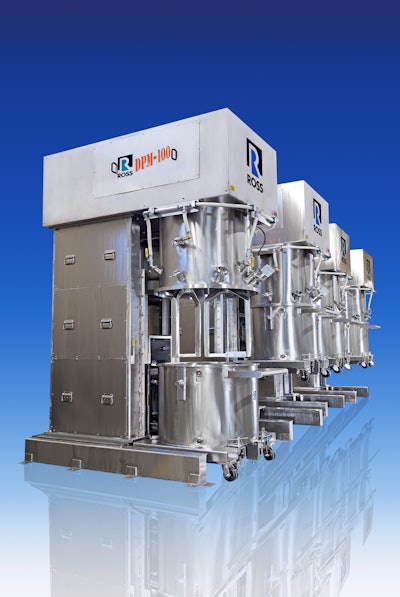

Ross Dpm 100 Reverse Lift Double Planetary Mixer

The ROSS double planetary mixer is available in a reverse-lift design that raises the vessel to the mixing position, rather than lowering the agitator assembly. The DPM-100 mixer features a clean-in-place system with five ports with rotating spray nozzles directed at the gearbox, agitators, and vessel. The spray balls are piped to a central cleaning system manifold for single-point hook-up. Raw material feeding equipment can be hard-piped to the vacuum hood. Suitable for wet and dry applications, including semisolids (gels and dough-like materials), the explosion-proof, 100-gal mixer is controlled from a NEMA 4X stainless-steel purged panel (Class I, Div. 1, Group D).
