From vinaigrettes to viscous pastes, today’s food processors are asking more from their mixing and blending equipment than ever before. Shorter production runs, increasingly complex formulations, tighter allergen controls, and the relentless push for automation are reshaping how manufacturers approach every stage of the mixing process.

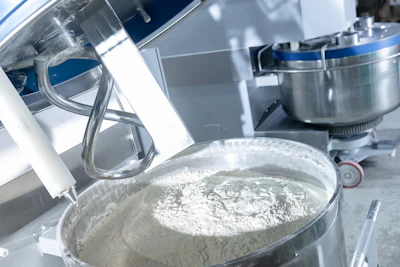

Shorter runs, complex formulations, tighter allergen controls, and the push for automation are reshaping every stage of the mixing process.
Parilov/Adobe Stock
The days of specialized mixing systems built for a narrow range of applications are fading fast. Modern processing demands equipment that can adapt—sometimes dramatically—within a single production run. “Modern mixing and processing systems can no longer be specialized systems that cover only a narrow viscosity range,” says Michael Kapps, National Sales Manager at AmTrade Systems, which serves as the official North American partner for GLASS GmbH & Co., a German manufacturer of industrial food processing machinery.
In practice, that means reliable performance across everything from a thin vinaigrette to a highly viscous, paste-like mayonnaise or a thick ready-made sauce—often within the same facility.
Shear control sits at the center of that challenge. Ken Langhorn, Vice President of Sales at ROSS, frames it around the need for precise calibration: “The key to minimizing product degradation is choosing the right mixing technology for the formulation.” Evaluating peak shear—a function of both mixer geometry and speed—is a critical part of that assessment.
Double planetary mixers are well suited for high-viscosity materials like doughs and pastes, where agitators move through the entire batch rather than relying on product flow. That same platform can also handle low-viscosity, shear-sensitive products, where limited viscosity naturally caps shear levels.
Not every platform is designed for that range, and leading manufacturers are candid about it. “If something is shear sensitive, don't use our mixers,” says Matt Smith, Sales Director of Silverson Machines, Inc., whose equipment is engineered specifically for high shear dispersion. That candor underscores a broader truth: Successful mixing starts with understanding exactly what a formulation requires—then selecting equipment to match, not the other way around.

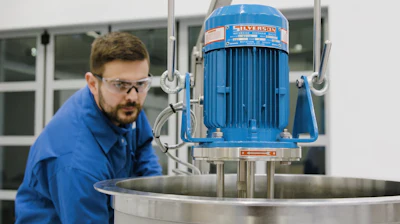

Silverson Machines' equipment is engineered specifically for high shear dispersion.Silverson Machines, Inc.
Engineering for versatility
One of the more technically demanding requirements in modern food manufacturing is the ability to handle both wet and dry blending within a single system, ideally without extensive reconfiguration between runs. Planetary mixers, ribbon and paddle blenders, and vertical cone screw blenders are all capable of bridging both worlds, Langhorn notes.
A new Munson Ribbon Blender with an integral bag dump station collects airborne dust generated during manual additions to the batch, improving worker safety and plant hygiene. Dust generated during manual dumping is drawn onto cartridge filters of the dust collector, as nozzles within each cartridge blast air on an alternating basis to dislodge accumulated material, returning it to the batch.MunsonIn some processes, dry blending occurs prior to wet blending for the same product, making a single-pot approach especially attractive. Says Langhorn: “A single platform solution eliminates inefficiencies in transfer steps, risk of contamination, as well as freeing up floor space in the process area”—though any such setup must be validated through testing before entering production.
For manufacturers working with more complex emulsified products, the engineering challenge shifts toward combining different mixing and shearing mechanisms within a single unit. In GLASS's VAS systems, interchangeable tools on a high-speed side rotor allow operators to precisely adjust energy input—ranging, as Kapps describes it, “from gentle mixing to intensive dispersion and emulsification”—without a full changeover.
Controlling dispersion
High-speed dispersion offers clear advantages—faster incorporation, finer particle size, and more stable emulsions—but it also introduces risks. Aeration, overheating, and ingredient degradation require careful attention to both mechanical design and process control.
Tool selection is foundational. GLASS’s VAS systems allow operators to choose from gentle rounded “whirlers,” classic grinding and cutting attachments, or turbines engineered for high shear forces. As Kapps explains, “delicate particle structures are preserved, while sufficiently high shear forces can be applied simultaneously to create stable emulsions.” Precise speed control enables consistent, repeatable results batch after batch.

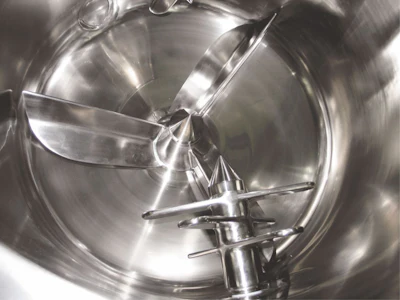

GLASS’s VAS systems allow operators to choose from gentle rounded “whirlers,” classic grinding and cutting attachments, or turbines engineered for high shear forces.GLASS GmbH & Co.
At the systems level, Langhorn points to variable speed control paired with programmable recipes and logic-based controllers that allow fine adjustments at each process stage. As viscosity changes mid-batch, speed can be reduced to prevent overheating and over-shearing. For higher-viscosity applications, he recommends closed-system multi-shaft mixers or hybrid planetary mixer/disperser combinations—“essentially preventing the formation of localized hot spots and eliminating any air voids,” says Langhorn. Optional vacuum operation and jacketed vessels extend these capabilities further.
Silverson’s approach emphasizes collaboration during product and process development. Testing establishes proof of concept, while commissioning support helps operations teams develop standard operating procedures that address aeration, heat generation, and over-shearing before issues arise on the production floor.
Customization versus scalability
The tension between bespoke, application-specific equipment and standardized, scalable platforms is a key consideration during capital planning. “While ROSS offers a wide range of standard equipment, a large number of the mixers we produce are specifically engineered to overcome our customers’ processing challenges,” Langhorn says.
Custom agitator designs, optimized vessel configurations, and enhanced vacuum capabilities can significantly improve performance—but the decision between custom and standard is, as Langhorn notes, “both a business and technical decision.” ROSS addresses this through its Test and Development Center, where customers can evaluate formulations under real-world conditions and identify equipment capable of supporting future growth. Rental options from both standard and custom-built inventories provide a lower-commitment path for short-term or campaign-based needs.

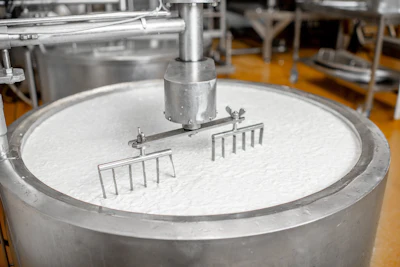

The tension between bespoke, application-specific equipment and standardized, scalable platforms is a key consideration during capital planning.rh2010/Adobe StockScalability is often more achievable than it appears—provided core design principles remain consistent from lab to production. Smith notes that Silverson’s high shear parameters, including tip speed and shear gap, remain consistent across its equipment. “Because the fundamentals of high shear mixer design are consistent, scaling becomes less of a challenge,” he says.
Processors who develop formulations on equipment different from what is used in production often encounter avoidable issues stemming from that mismatch rather than the formulation itself.
Building modularity from the outset is equally critical. “Mechanics, peripherals, and controls are structured in such a way that functions can be specifically added later,” Kapps explains—whether integrating dosing stations or adding a homogenizer as product lines expand. Requirements not apparent at installation frequently emerge during operation, and systems designed to accommodate them protect the initial investment without requiring line shutdowns.
Real-time control
Few areas of mixing technology are advancing faster than automation and process intelligence, and the shift extends well beyond basic timers and temperature monitoring. “To achieve high batch-to-batch reproducibility, it is no longer sufficient today to monitor only temperature and time,” Kapps says.
As an optional extra Silverson Machines' Flashmix can be supplied with pneumatic valves coupled to a powder sensor for semi-automatic processes.Silverson Machines, Inc.What matters is how much energy is introduced into the product at each stage—particularly when incorporating steam, water, and oil. AmTrade is working to link process-critical data, such as energy input relative to viscosity development, into control logic that can determine when a process step is truly complete: when optimal emulsification or target texture is achieved, rather than when a timer expires.
HMI and SCADA systems are key enablers. Langhorn highlights their role in automatic data logging, batch traceability, and regulatory compliance. Recipe controls accessible via smartphone or tablet provide real-time visibility into mixer performance across the plant. For processors evaluating new equipment, he recommends prioritizing “recipe management, batch traceability through data logging, and integration with existing plant-level systems.”
Online or continuous particle-size monitoring post-mixing is one practical method for ensuring reproducibility, Smith adds, along with tracking motor amp draw as an endpoint indicator. This provides a reliable signal that a formulation has reached its target state without requiring manual sampling. “The customer is the expert in their formulation,” he says, “—it is often they who take the lead on such monitoring.”
The changeover challenge
As production runs shorten and changeovers become more frequent, sanitation design has evolved from a compliance requirement into a competitive differentiator. Processors handling multiple formulations—especially those involving allergens—cannot afford cleaning protocols that significantly reduce uptime.

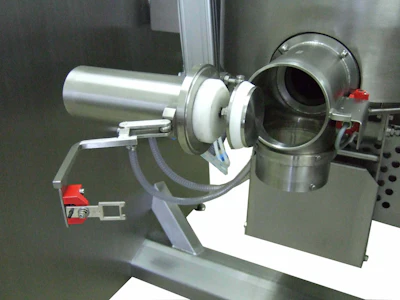

Sanitation design has evolved from a compliance requirement into a competitive differentiator.GLASS GmbH & Co.“Cleanability has been the focus of GLASS mixer design for many years,” Kapps says. These systems are engineered for easy access and disassembly with minimal tooling. Their hygienic seal design allows shaft seals to be removed for inspection and cleaning without pulling the motor, while maintaining multiple seal carriers enables rapid swaps between batches to support allergen control.
At ROSS, interchangeable mix cans support semi-continuous operation—allowing one batch to run while another is discharged and a third is cleaned. “It’s a practical way to keep production moving while still meeting strict sanitation requirements,” Langhorn says.
Silverson similarly prioritizes CIP compatibility, designing mixers that “conform to the latest clean-in-place protocols so that machines do not have to be taken out of service for cleaning,” according to Smith.
Long-term investment protection
Flexibility, testability, and intelligent design are no longer premium features in mixing and blending equipment—they are baseline expectations for processors competing in a dynamic market. Equipment decisions made today will shape operational flexibility for years, if not decades.
“A well-built mixer is one of the most effective ways to improve efficiency,” Langhorn says. “High-quality equipment requires less maintenance, delivers consistent results, and is built to withstand the demands and regulations in the food industry.” His recommendation: Invest in equipment with interchangeable agitators, variable speed control, and semi-continuous capabilities to accommodate evolving product lines. Validate performance through testing—and build in adaptability from the start.
For Smith, protecting a capital investment comes down to consistency between R&D and production. Using the same equipment across both stages enables smoother scale-up and faster commercialization. “Being able to scale quickly and accurately from R&D to production,” he says, “will not only get the maximum benefit from the capital equipment but also the edge on getting products to market.”
